Stainless Steel Bathroom Stalls

ULTIMATE ELEGANCE / #2 MOST POPULAR / IN STOCK READY TO SHIP / AVG. $1,156 PER STALL Stainless steel bathroom stalls provide a high end and elegant appearance. The material is easy to clean, resistant to rust from humid conditions and matches well with any color and décor. The material is ideal for hospitality and higher end establishments that seek to impress. To receive a quote on your project, please email [email protected] or call 800-685-7541 to speak to an estimator.

  • Ships in 48 Hours!
  • Quick Delivery.
  • Lowest Prices Guaranteed!
  • All Hardware Included.
Get a Quote

Colors & Finishes

In Stock. Ships in 48 Hours!

#4 Satin

  • Quick Ship available in standard/stock part sizes.
  • Quick Ship available in Overhead Braced & Floor Mounted styles.
  • All orders over 10 stalls will fall under the standard ship category.

Custom. Ships in 8-12 (#4 Satin), 17 (5SM), and 15-19 (leather Grain) Business Days!

Diamond⭐

Leather Grain⭐

⭐ Star indicates a 20-30% premium finish

Need samples? Request them here



Mounting Styles

Overhead Braced

Most popular bathroom stall mounting style. Created for virtually any facility where high strength is required to ensure a rigid and secure installation. Anti-grip headrail is used for additional strength. Overall Height: 82″. View Details or Compare Styles.

Floor Mounted

Second most popular bathroom stall mounting style. It provides a spacious, consistent, and flush appearance across the top of panels and pilasters for a modern appeal. Overall Height: 70″. View Details or Compare Styles.

Ceiling Hung

This bathroom stall mounting style provides for unobstructed floor space beneath the stalls. Floor to ceiling pilasters can be added to provide maximum strength and durability. Overall Height: Customized to your specifications. View Details or Compare Styles.

Floor to Ceiling

This bathroom stall mounting style attaches to the floor, ceiling, and walls for ultimate stability. Results in maximum resiliency to abuse and provides extra durability. Overall Height: Customized to your specifications. View Details or Compare Styles.

Privacy Heights

Standard Privacy

58” high doors and panels.
12” off the floor.

Optional:
No-peek doors (privacy strips for no peeking).
 Full length brackets.

Ships in 48 hours!

Cost: Most economical.

Medium Privacy

64” high doors and panels.
6” off the floor.

Includes:
No-peek doors (privacy strips for no peeking).
 Full length brackets.

Ships in 2-3 weeks.

Cost: 21% more than standard

Ultimate Privacy

72” high doors and panels.
6” off the floor.

Includes:
No-peek doors (privacy strips for no peeking).
 Full length brackets.

Ships in 2-3 weeks.

Cost: 30% more than standard

Stainless Steel

Material: Stainless Steel

Finish: Satin #4

Bracing: Overhead Braced

(Includes no-peek privacy strips)

Material: Stainless Steel

Finish: Satin #4

Bracing: Overhead Braced

Material: Stainless Steel

Finish: Satin #4

Bracing: Overhead Braced

(Wall Hung Urinal Screens!)

Material: Stainless Steel

Finish: Satin #4

Bracing: Overhead Braced

Material: Stainless Steel

Finish: Satin #4

Bracing: Overhead Braced

Material: Stainless Steel

Finish: Satin #4

Bracing: Overhead Braced

Material: Stainless Steel

Finish: Satin #4

Bracing: Overhead Braced

Material: Stainless Steel

Type: Urinal Screen

Mounting: Wall Hung

Brackets: Chrome Plated Brackets

Material: Stainless Steel

Bracing: Floor Mounted

Privacy: Privacy Height

Material: Stainless Steel

Bracing: Overhead Braced

Material: Stainless Steel

Bracing: Overhead Braced

Material: Stainless Steel

Bracing: Overhead Braced

Material: Stainless Steel

Bracing: Overhead Braced

Material: Stainless Steel

Finish: Brushed

Bracing: Overhead Braced

Construction Features

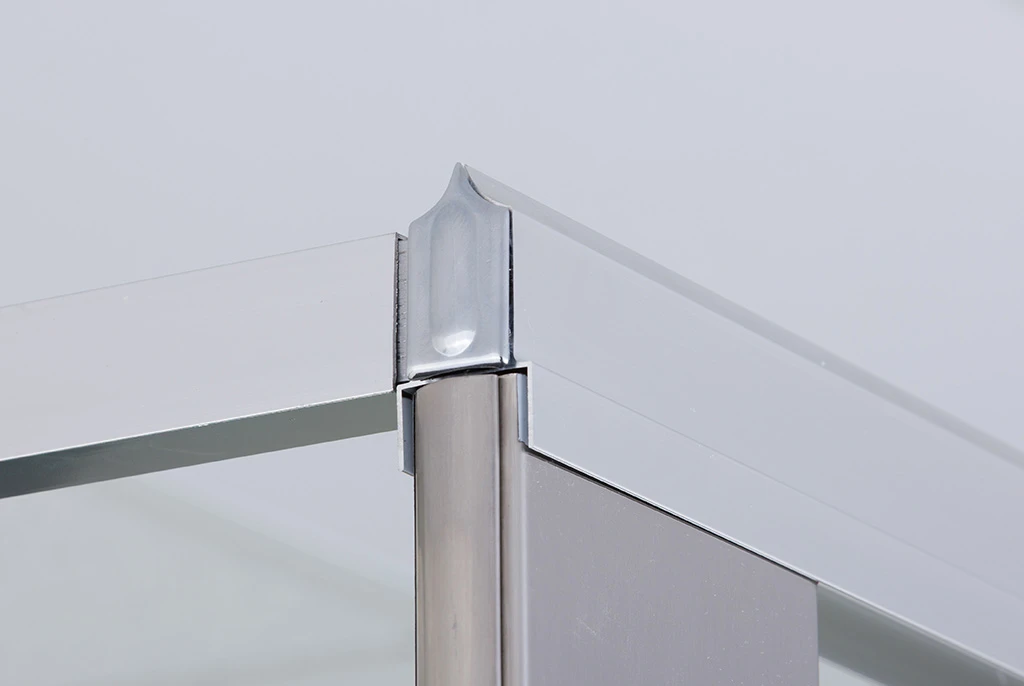

Anti-Grip Headrail

Bright dipped aluminum headrail to match chrome hardware for a coordinated uniform appearance. The top is pointed, resulting in an “anti-grip” top structure to prevent hanging from the partition.

Adjustable Cam

Bottom of the door features a unique "no rise" self-closing and concealed adjustable cam. Hardware is constructed of zamac die cast metal.

Pin Insert

Top of the door features a heavy duty 3/8" diameter chrome plated steel pin with nylon insert for smooth operation. Hardware is constructed of zamac die cast metal.

Concealed Latch

The door features a unique ADA-approved concealed slide latch with external two color (green/red) "in use" indicator designed to provide emergency accessibility from the outside of the stall. Hardware is constructed of zamac die cast metal.

Pilaster Shoe

Each pilaster has a 4” high #4 finish stainless steel plinth (shoe) beautifully connecting the bottom of the pilaster to the floor, aesthetically hiding the floor mountings and any visible drill holes.

Honeycomb Core

The interior of all doors, panels, and pilasters are reinforced with vertical cellular honeycomb core, bonded with super strong & long-lasting adhesives to every inch of the interior walls, enhancing strength, impact resistance, and providing extra support.

Corner Clips

All door and panel corners are finished with pre-formed stainless steel reinforcements. Corners are welded internally to ensure that the galvanized rust resistant coating is not removed. These beautiful corner clips prevent any necessity of external corner welding and metal grinding, yielding an aesthetically pleasing and strong structural connectivity that lasts a long time.

U BRACKETS

Pilasters are connected to the panels with U brackets, providing a structurally strong and tight connection. Hardware is constructed of zamac die cast metal.

Wall Brackets

The panels feature wall brackets, which provides a structurally strong connection for panel to wall connection/mounting. Hardware is constructed of zamac die cast metal.

INTERLOCKING MOLDINGS

All edges of doors, panels, and pilasters are finished with a 20-gauge interlocking molding around the perimeter, providing a strong structural interlocking connection.

Hardware

Materials: Door hardware is available in die-cast chrome or cast stainless steel. Bracket hardware is available in die-cast chrome or stamped stainless steel.

DOOR HARDWARE

Top Hinge Bracket

Top Hinge Pin

Bottom Hinge Bracket

Stay Set Cam

Concealed Latch

Strike & Keeper

Door Pull

Coat Hook & Bumper

Door Bumper

Surface Mounted Latch

Strike & Keeper Surface Latch (Inswing / Emergency)

Strike & Keeper Surface Latch (Inswing / Non-Emergency)

Strike & Keeper Surface Latch (Outswing)

BRACKETS

1" - 2 Ear Bracket

1" - 1 Ear Bracket

1-1/4" - 1 Ear Bracket

1" - U-Bracket

Panel/Pilaster Alcove Clip

MOUNTINGS & HEADRAILS

Aluminum Anti-grip Headrail

Aluminum Rectangular Headrail

Headrail to Wall Bracket

Anti-grip Headrail End Cap

Headrail to Pilaster Bracket

4" High Pilaster Shoe (aka Plinth)

Post Cap

Post Shoe

Shoe Clip

Shoe Floor Bracket

  • Ships in 48 Hours!
  • Quick Delivery.
  • Lowest Prices Guaranteed!
  • All Hardware Included.

Stainless Steel restroom partitions provide a modern look to any commercial restroom and retain their beauty indefinitely. This material is the most attractive and high end of all toilet partition materials. The material is corrosion resistant and has a clean and modern appearance. Add the textured finish for increase resistance to vandalism. Be aware that this is one of the more expensive material types. To receive a quote on your project, please email [email protected] or call 800-685-7541 to speak to an estimator.
