Bathroom Stall Layout Configurations
Bathroom stalls are availalbe in a wide array of layout configurations, all designed to perfectly fit any bathroom size and stall requirement.
When selecting a bathroom stall layout, consider the following:
- Stall Count. How many stalls are needed? Don’t forget urinal screens!
- Handicap Laws: Does your restroom require a handicap stall? (ADA Compliance)
- Room Size. Which layout will best fit your room size without interfering with walkable space and ability for someone to navigate the bathroom spaciously?
- Room Obstructions: Are there any obstructions in the way that would interfere with your desired layout? (i.e. a pole, stub wall, or a sink.)
The most common bathroom stall layouts are “In Corner Left” and “In Corner Right”.

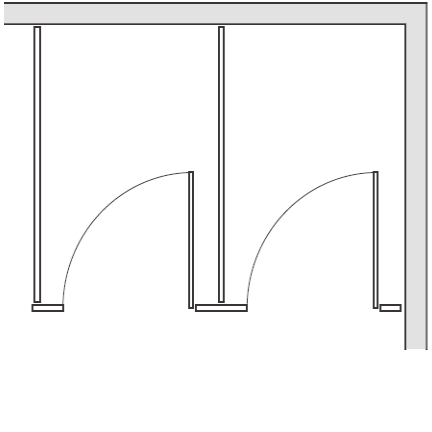

In Corner Left
In corner left layout has stalls in a corner against a wall. As you sit on the toilet facing the door, the wall is to your right.

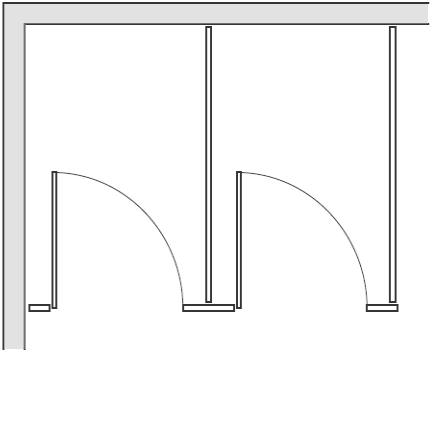

In Corner Right
In corner right layout has stalls in a corner against a wall. As you sit on the toilet facing the door, the wall is to your left.
Between Walls
Between walls layout has stalls that have walls on both sides.

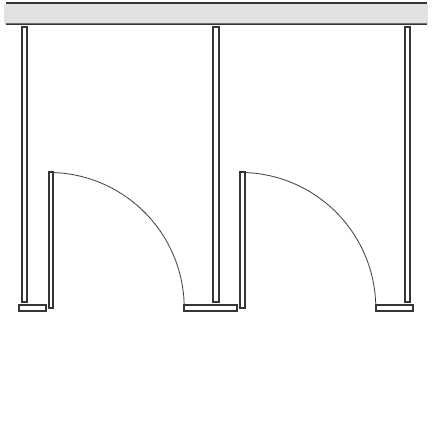

Freestanding
Freestanding layout has stalls that have no wall on either side. This layout is rarely requested.

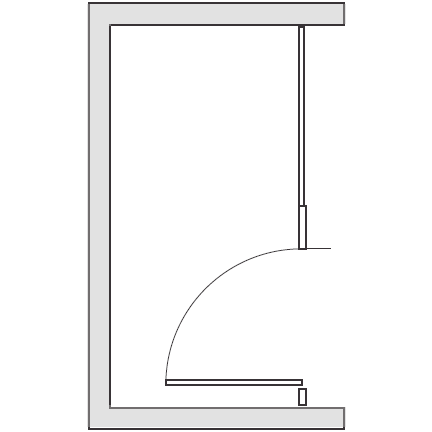

Alcove Left
Alcove left layout consists of a corner layout that is surrounded by three walls.

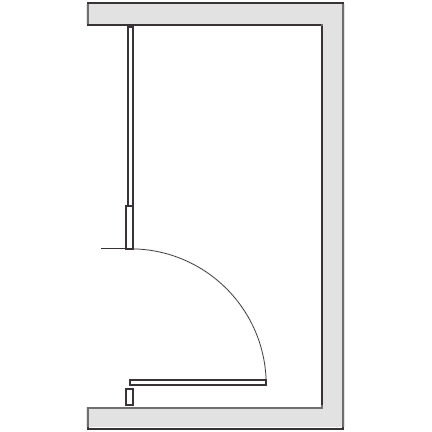

Alcove Right
Alcove right layout consists of a corner layout that is surrounded by three walls.
Alcove Left with Freestanding Stalls
Alcove left with freestanding stalls consists of a corner alcove stall with freestanding units that are attached to one side.
Alcove Right with Freestanding Stalls
Alcove right with freestanding stalls consists of a corner alcove stall with freestanding units that are attached to one side.

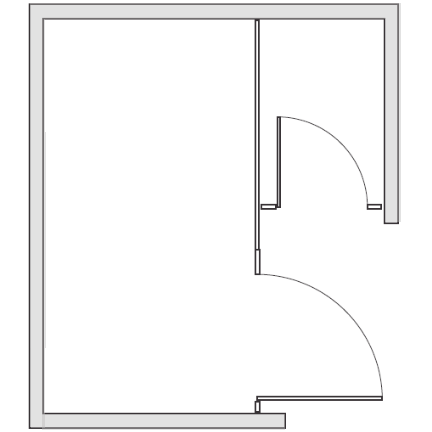

Alcove Left with Between Walls Stalls
Alcove left with bewteen walls stalls consists of an alcove stall that has walls on three sides, with additional stalls that are between another wall.

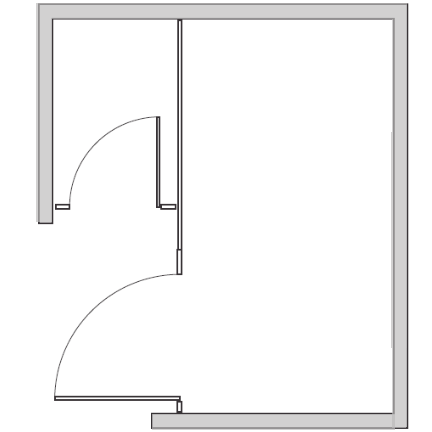

Alcove Right with Between Walls Stalls
Alcove right with bewteen walls stalls consists of an alcove stall that has walls on three sides, with additional stalls that are between another wall.
Between Walls with Large and Small
Between walls with a large handicap stall in the right corner and smaller standard stall. Rare, but we see it on occassion.
Between Walls with Large and Small
Between walls with a large handicap stall in the left corner and smaller standard stall. Rare, but we see it on occassion.

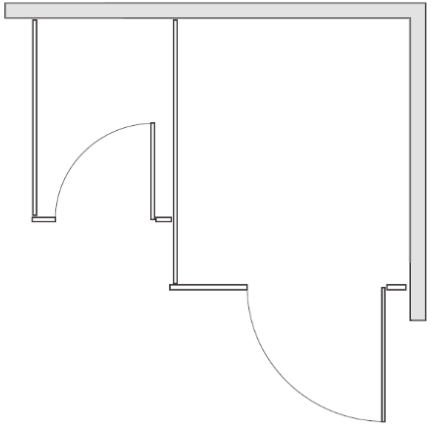

Corner Right with Large & Small
In corner right with handicap corner stall and smaller freestanding stall.

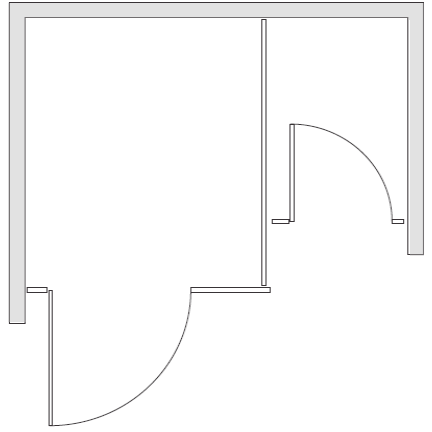

Corner Left with Large & Small
In corner left with handicap corner stall and smaller freestanding stall.
